GEOMETRY NODES · DRAG & DROP

SIMPLE UV Nodes

UV projection and transformation, live in your modifier stack. No unwrapping, no operators, no context switch — just drag a node in.

Every Node, One Asset Library

Drag straight out of Blender's Asset Browser into your modifier tree — no installer, no Preferences toggle to hunt for.

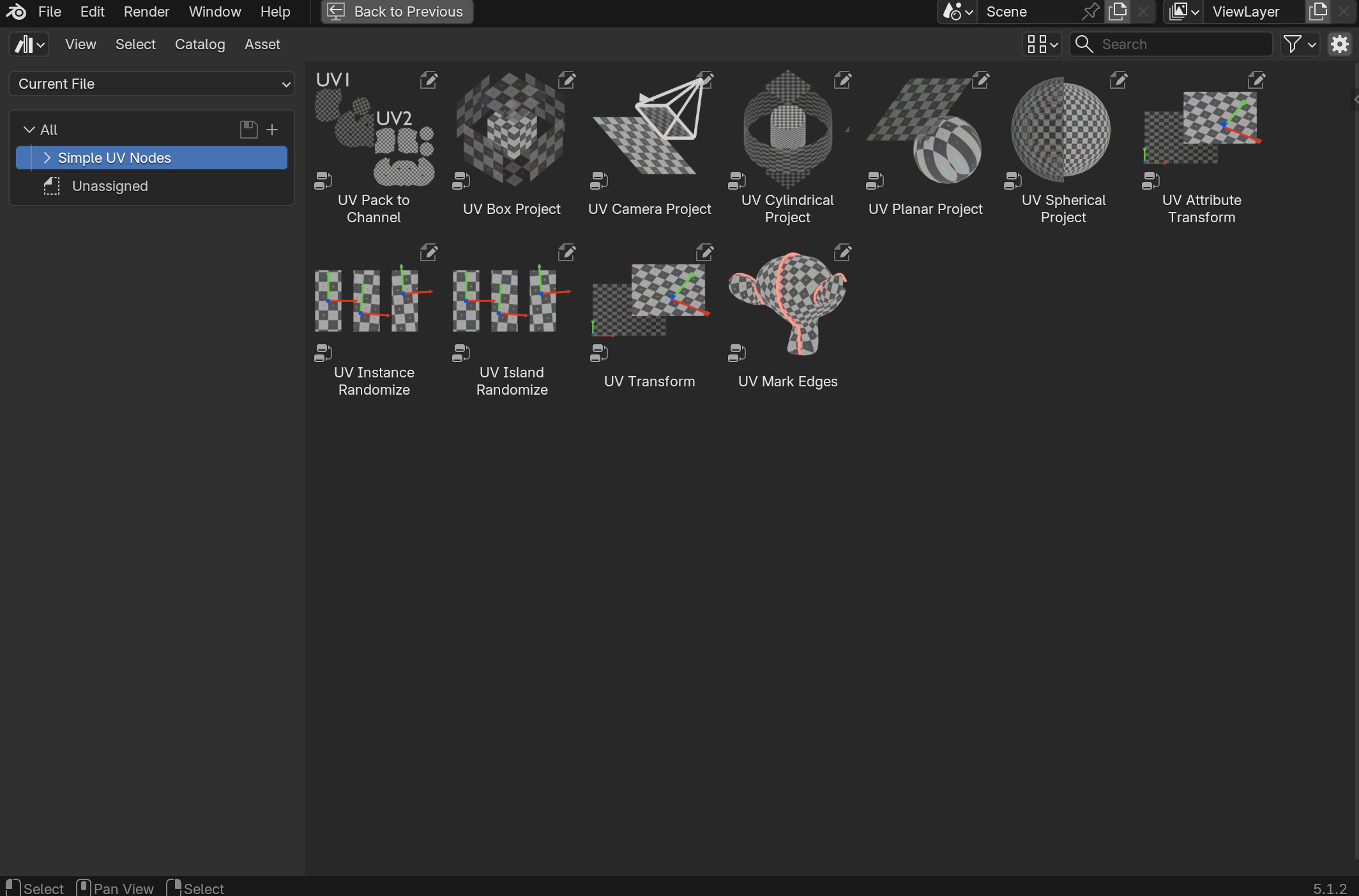

Blender Asset Browser showing all 11 Simple UV Nodes as drag-and-drop assets, each with a checker-pattern UV preview

Install in Four Steps

1. Download

Grab the release zip and extract it.

2. Pick Your Version

Choose the folder matching your Blender install, e.g. Simple_UV_Nodes_4_5.

3. Register the Library

In Preferences → File Paths → Asset Libraries, add that folder as a new Asset Library.

4. Drag & Drop

Open the Asset Browser, set it to Simple UV Nodes, and drag any node into your tree.

STAYS LIVE, STAYS PROCEDURAL

Non-Destructive
By Default

Blender's built-in UV projection tools live outside the modifier stack — run an operator, the result is baked, and any adjustment means starting over. Simple UV Nodes brings projection into Geometry Nodes so it stays live, adjustable, and procedural.

✓ Change any parameter at any time — nothing is baked until you need it to be

✓ Reacts automatically to upstream geometry changes

✓ No context switching — stay in the Geometry Nodes editor

DYNAMIC · WYSIWYG

See It in the Camera,
Get It in the UVs

Line up a real Camera object and the UVs match its view exactly — focal length and sensor size are read straight from the camera's data-block.

✓ Perspective or Orthographic — follows the camera's lens type, with true parallel projection when set to Orthographic

✓ Projection resolution set independently of the scene render resolution

Because it's a Geometry Nodes modifier, the projection stays dynamic — move or animate the Camera, or edit the mesh upstream, and the UVs re-project in real time.

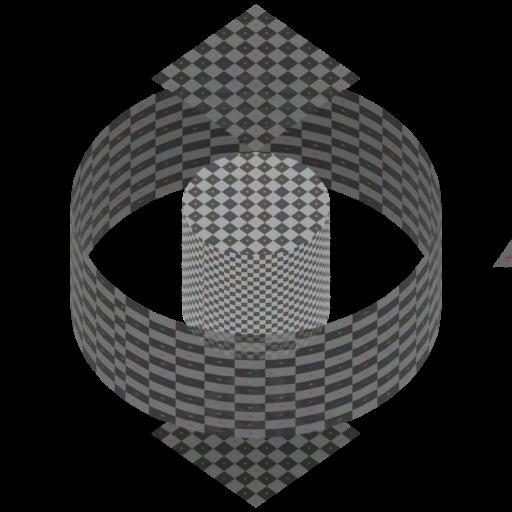

UV Cylindrical Project node preview showing a checker texture wrapped around a cylindrical mesh

BUILT FOR EVERY SURFACE

Planar, Spherical,
or Cylindrical

Pick the projection that matches the geometry — flat for floors and walls, seam-corrected spherical for round objects, or cylindrical with optional blended caps for pipes, columns, and anything else that revolves around an axis.

✓ Planar — flat projection for dominant-direction surfaces

✓ Spherical — normalized or real-world scale, seam-corrected

✓ Cylindrical — optional blended caps on end faces

INSTANCE & ISLAND RANDOMIZE

Break Up
Texture Tiling

Randomize offset, rotation, and scale for each instance or UV island to break up repetition. Ideal for scattered geometry, wood planks, or objects using repeating tileable textures.

✓ Instance Randomize — random UV transform per instance

✓ Island Randomize — random UV transform per UV island

AUTOMATE THE UV PIPELINE

Skip the Manual
Cleanup Pass

Automate the cleanup at the end of your modifier stack — mark UV seams as sharp edges, or pack the UVs onto a second channel for lightmaps, ambient occlusion, or texture masks.

✓ Mark Edges — turn UV island boundaries into seams and sharp edges automatically

✓ Pack to Channel — auto-pack islands into a second UV channel for lightmaps, ambient occlusion, or masks

All 11 Nodes

Every projection, transform, and utility node in the pack.

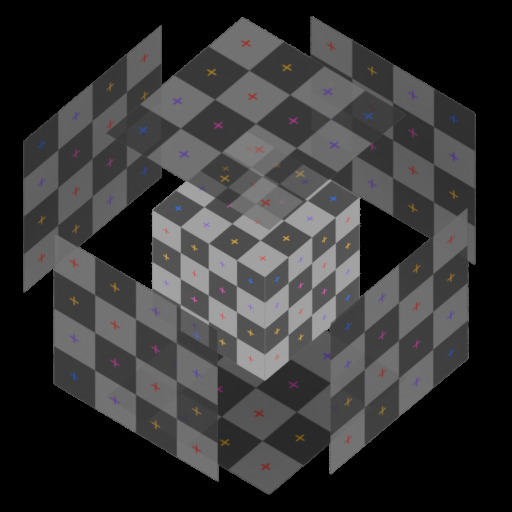

UV Box Project

Triplanar blend from all three axes, with independent offset, rotation, and scale per face — Object or World space.

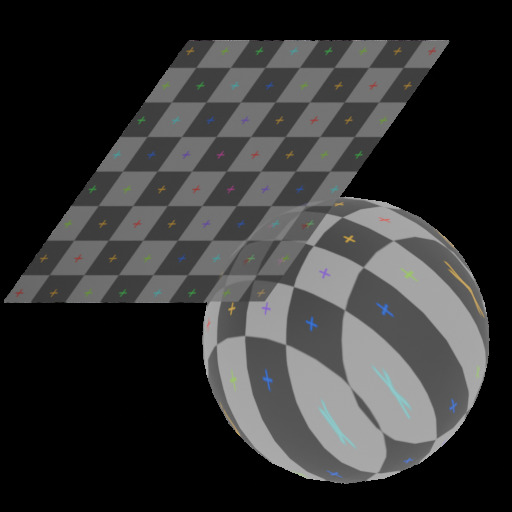

UV Planar Project

Flat projection along a chosen X, Y, or Z axis, with its own offset, rotation, tiling, and scale.

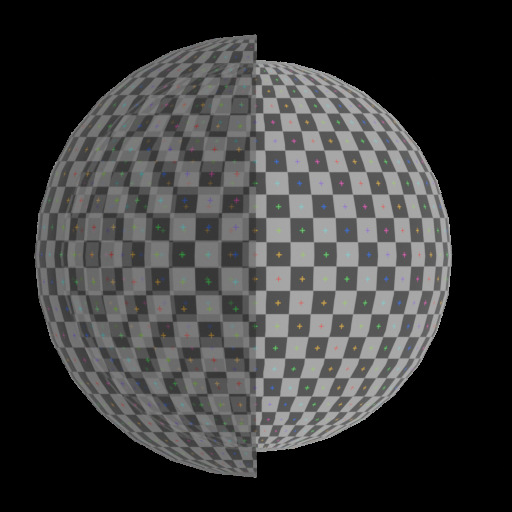

UV Spherical Project

Equirectangular wrap, seam-corrected on any pole axis. Real World Scale keeps texel density consistent with a neighboring projection.

UV Cylindrical Project

Wraps around a chosen axis, with optional blended caps on end faces past a face-normal angle threshold. Rotate shifts the seam.

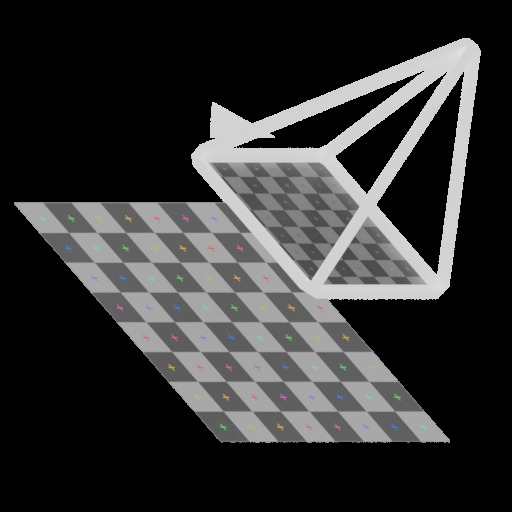

UV Camera Project

Reads a real Camera's focal length, sensor size, and lens type — including true parallel projection in Orthographic. Updates live.

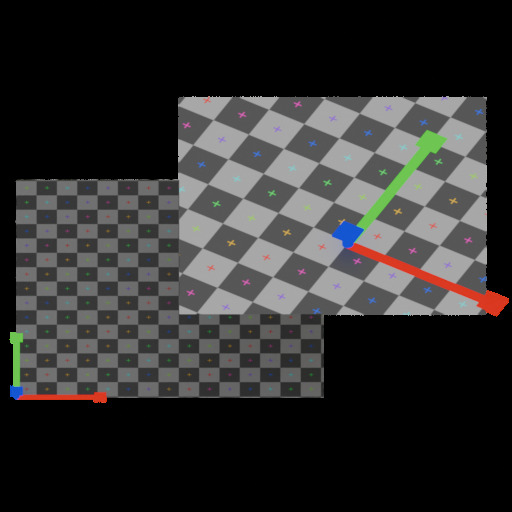

UV Transform

Non-destructively offset, rotate, scale, tile, and mirror any existing UV map — no re-projecting from scratch.

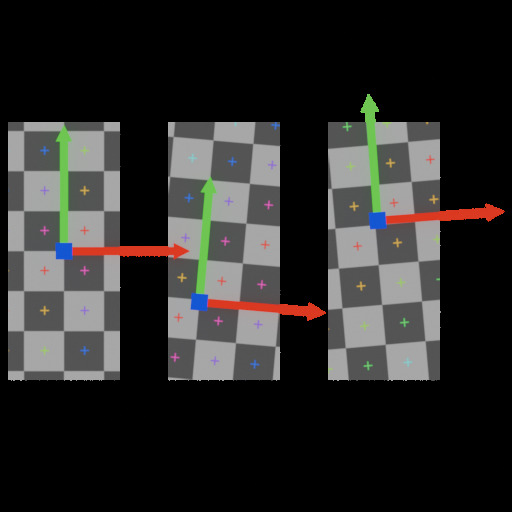

UV Instance Randomize

Seed-controlled offset, rotation, and scale per instance, pivoted on each UV island's center so placement stays predictable.

UV Island Randomize

The same per-instance randomization, scoped to UV islands on one mesh — stack both for rock piles and brick walls.

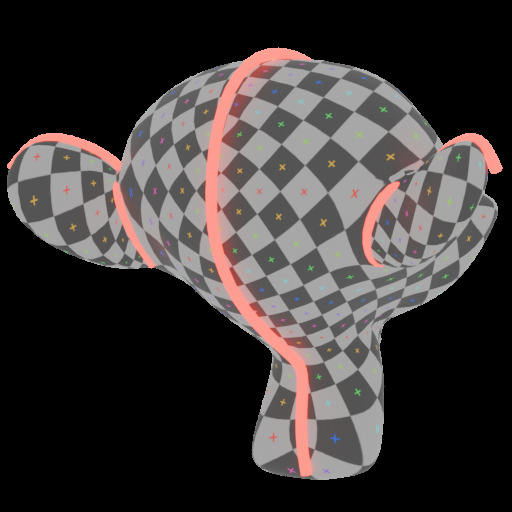

UV Mark Edges

Writes island boundaries to seams and/or sharp edges, with independent Clear toggles to replace or layer with existing marks.

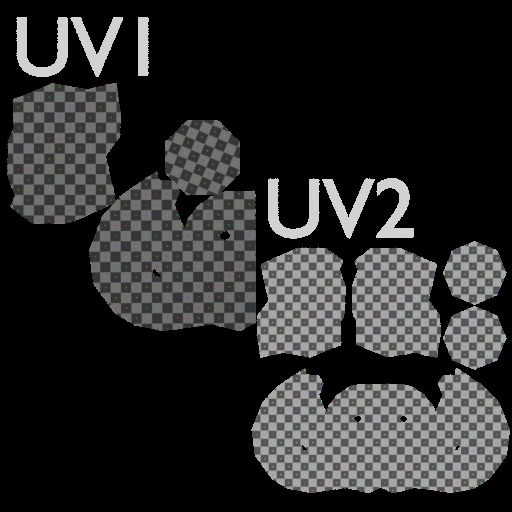

UV Pack to Channel

Packs islands into a destination map for lightmaps — Exact Shape packing traces the real outline, not just a bounding box.

UV Attribute Transform

A pure-vector helper with no Geometry socket — offsets, rotates, and scales a UV coordinate inline inside custom node groups.

Everything Inside

One library, the whole UV workflow.

Named UV Attributes

Every node targets a user-specified UV attribute name, so you can create and manage multiple UV maps on one mesh.

Object or World Space

Choose the coordinate space for projections to keep UVs stable under object transforms or locked to the world.

Pure Geometry Nodes

No Python dependency, no operator to run — everything is a standard Geometry Nodes modifier.

Minimum Blender version: 4.5. If you update to a new minor version, swap the registered Asset Library folder to the matching one from the zip — older folders keep working but won't include newer features.

Why Trust Simple UV Nodes?

Over a decade refining workflows for real-time engines. Simple Renaming, Simple Collider, Simple Export, and Simple Camera Manager are used and trusted by thousands of artists and studios worldwide.

Simple Renaming — 50,000+ users

Simple Collider — 500+ users

Simple Export

Simple Camera Manager

Get Simple UV Nodes

Start working with non-destructive UV projections — live in your modifier stack, no unwrapping required.
